Frameless, zero‑post design – maximized view & natural light
Tool‑free, modular U‑channel – 35% faster installation
Typhoon‑proof & impact‑resistant – certified safety (EN/ASTM)
Weather sealed (Class 5) – waterproof & draft‑free
Rust‑proof, zero maintenance – lasts decades without repainting
No vertical posts or bulky frames – uninterrupted panoramic sightlines that increase property value and enjoyment.
Certified to withstand extreme typhoon‑force winds (Level 10), suitable for high‑rise coastal buildings.
Heavy rain resistant (Level 5 watertight) and air infiltration rated Level 5 – keeps your balcony dry and energy‑efficient.
Reduces external noise equivalent to double‑glazed windows – enjoy quieter indoor spaces.
| Wind Load Resistance | Level 10
Safe under severe typhoons – tested to EN 1991‑1‑4 standards.
|
|---|---|
| Water Tightness | Class 5
No leakage even during heavy rainstorms; ideal for exposed terraces.
|
| Air Permeability | Class 5
Minimizes drafts and heat loss, contributing to energy savings.
|
| Thermal Transmittance (U‑value) | 1.5 W/(m²·K)
~30% more energy efficient than standard glass railings.
|
| Acoustic Insulation (Rw) | 42 dB
Comparable to double‑glazed insulating glass – reduces street noise significantly.
|
| Glass Type | Tempered safety glass / laminated available
Complies with ANSI Z97.1 and EN 12600.
|
| Material – Post & Base | Marine‑grade aluminum 6063‑T5, stainless steel fixings
High corrosion resistance for coastal environments.
|
| Max Span (glass panel) | Up to 2000mm (customizable)
Fewer gaps, cleaner look.
|

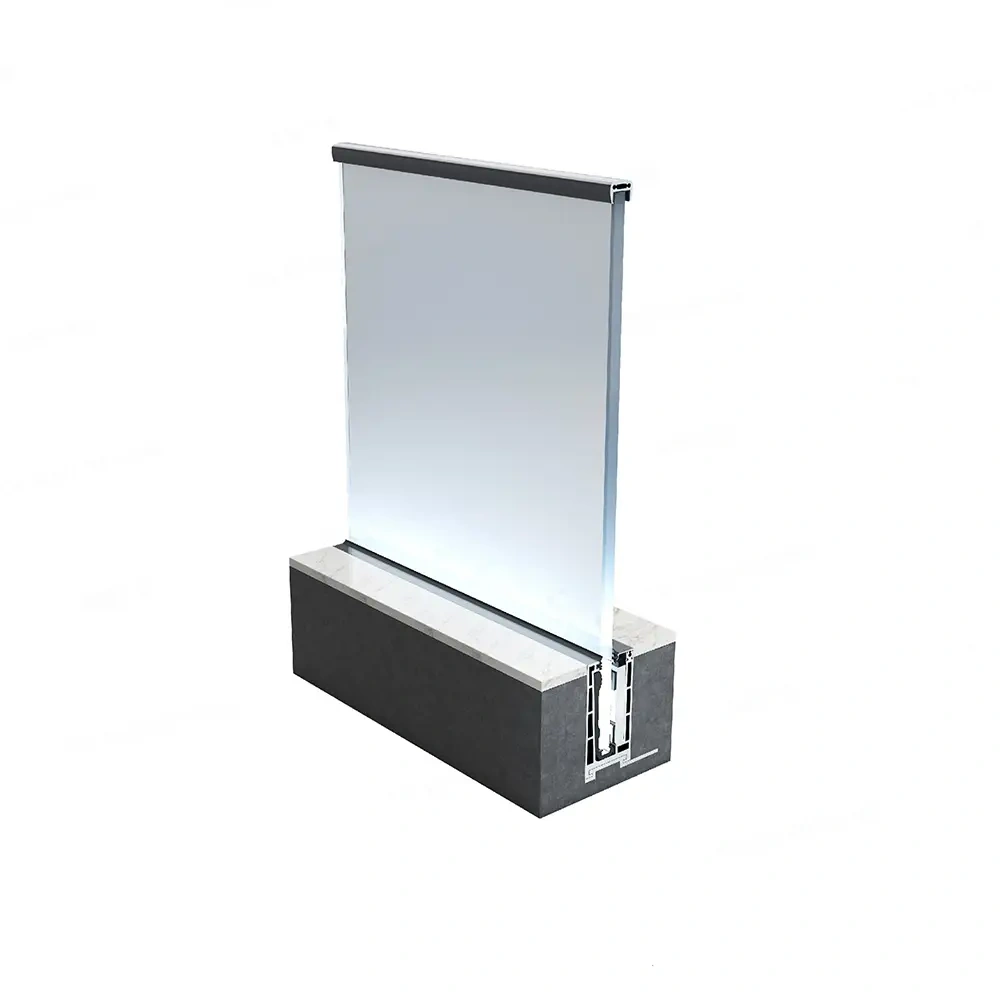

Traditional railings with pickets or thick frames block the view and feel dated. Our Zenith series redefines modern architecture by blending maximum transparency with uncompromised structural integrity. The system uses a concealed U‑channel base and precision‑machined glass clamps that hold the tempered glass panels without any vertical interruption. The result is a sleek, minimalist barrier that makes the boundary between interior and exterior almost invisible.
Each glass panel is made from heat‑soaked tempered safety glass that is 5x stronger than standard float glass. Even under extreme impact, it breaks into small, harmless granules. The aluminum profiles undergo a 220‑hour salt spray test to ensure zero corrosion – perfect for seaside villas and high‑humidity poolsides. Additionally, the system passes the EN 14183 structural load test, making it safe for both residential and commercial applications.
The combination of airtight sealing gaskets and multi‑chambered aluminum profiles gives the Zenith balustrade a thermal break that reduces heat transfer. With a U‑value of only 1.5 W/(m²·K), it helps maintain indoor temperatures and lowers air‑conditioning costs. Meanwhile, the 42dB acoustic rating turns your balcony into a quiet oasis even when located on busy streets or near elevated train lines.
The modular U‑channel system and pre‑drilled base plates allow quick assembly on site. No welding required – just bolt the base, slide in the glass panels, and secure with top caps. Installation time is up to 35% faster compared to traditional welded steel balustrades. Replacement of a single glass panel is also straightforward without disassembling the entire railing.
Wind‑tested for tall buildings.
Corrosion‑proof, safe and elegant.
Maximises light and space.
Unobstructed diner view.
✔ All documents are available upon request – contact our technical team for immediate download.
📩 Get a quote for your project
Tell us your glass panel size, quantity and project location — we reply within 24 hours with engineering support.
Request a quote →| Core Product Specifications | |
|---|---|
| Insulation Strip | High-quality thermal break strip for superior thermal insulation |
| Profile Thickness | Customizable heavy-duty aluminium profile thickness (specs vary by model) |
| Frame Visual Surface | Sleek narrow frame design, maximizes viewing area |
| Visible Surface of Mullion | Integrated structural mullion for stability without sacrificing aesthetics |
| Sash Visual Surface | Flush sash design, ultra-thin sight line, minimalist style |
| Glass Specifications | Multi-layer insulated glass options (tempered, laminated, etc.) for sound & heat insulation |
| Accessories Brand | High-grade hardware from trusted brands for smooth operation and durability |
| Window Screen Scheme | Available with insect screen (optional: fixed, removable, or flyscreen) |
| Available Colors | RAL color chart or custom powder coating colors |
| Usage Scenario | Suitable for high-rise apartments, modern villas, commercial buildings, and balcony railings |
| Notes | Professional installation recommended for optimal performance |
