Zenith 128 Series Panoramic Sliding DoorBreaking conventions, leading the trend. Unique design that subverts tradition. Every switch is a pursuit of fashion. Off‑axis door series available.

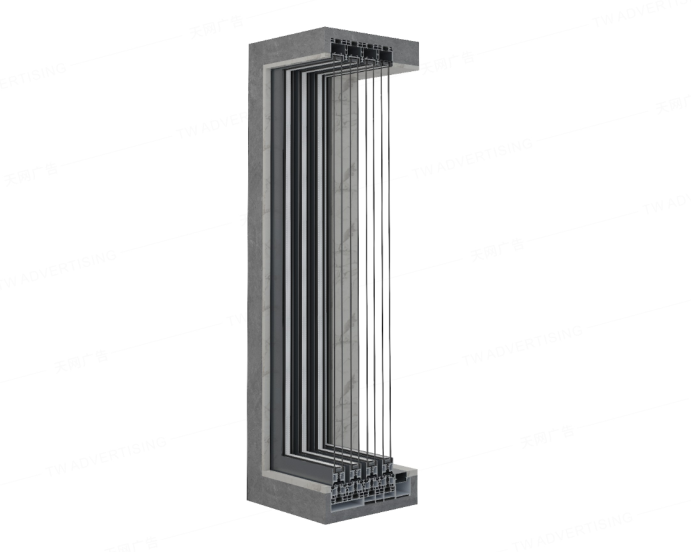

The Zenith 128 Series Panoramic Sliding Door redefines modern architecture with ultra‑narrow profiles, industrial‑grade durability and intelligent integration. Engineered for panoramic views up to 5m height, the system features a 20mm visual face, 39mm insulating glass unit and multi‑track flexibility. Ideal for villas, high-end residences and wall facades – seamless indoor‑outdoor living.

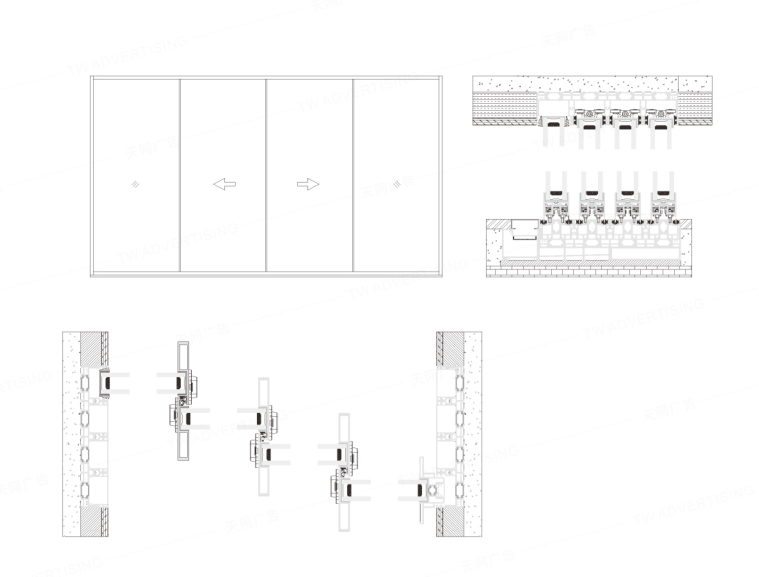

Structural layers: Double rail system → 39mm hollow glass (polyurethane thermal insulation) → multi‑seal configuration with airtight valve beads → hidden drainage channel.
Thermal break: Imported Tainuo insulation strip (28mm multi‑bridge design).
Load transmission: Movable double steel rail + high‑stability rollers → 500kg bearing capacity.
| Parameter | Description / Value |
|---|---|
| Product Series | Zenith 128 Series Panoramic Sliding Door |
| Max. Height / Area | 5m / 12m² (ultra‑high & wide dimension) |
| Ultra‑Narrow Central Mullion | 20mm (ultimate face viewing, ultra‑narrow visual charm) |
| Super Load‑Bearing Capacity | 500kg – smooth sliding even under heavy load |
| Multi‑Track Options | Steel rail, floor row wheel, aluminum cover plate, marble style, sealed sun french window configuration |
| Sub‑Series Models | Zenith 128RA / 128GRG / 128RS / 128RB (customizable profiles) |
| Special Door Types | Non‑pillar corner sliding door, monorail pocket door (hidden track), panoramic floor‑to‑ceiling sliding window |
| Glass Hollow Layer Thickness | 39mm ultra‑wide insulating glass unit |
| Thermal Insulation Material | New polyurethane thermal insulation material |
| Thermal Break Strip | Imported Tainuo insulation strip – 28mm multi‑bridge design |
| Frame Concealment | Fully hidden frame capability |
| Rail System | High stability movable double steel rail for load bearing |
| Performance Indicator | Value / Level |
|---|---|
| Air Permeability | Class 5 |
| Watertightness | Class 10 |
| Wind Load Resistance | Passed (high performance) |
| Thermal Insulation (U‑value) | 1.5 W/(m²·K) |
| Sound Insulation (Rw) | 42 dB |
| Component | Specification |
|---|---|
| Drainage Type | Hidden drainage outlet + display‑style movable drain cover |
| Multi‑layer Drainage | Double‑layer design to prevent odor escaping, stainless steel filter for large debris |
| Drain Cover | Stainless steel drain cover, fully customizable shape (flush with profile) |
| Sealing System | Multi‑seal configuration with airtight valve beads – prevents rainwater backflow |
| Bottom channel | Custom drainage valve, integrated perfectly with the profile |
| Feature | Description |
|---|---|
| Locking Points | Multi‑position stainless steel mushroom lock points – firm embedding, enhanced security |
| Roller / Track | High‑stability double rail, 500kg load rating, smooth movement |
| Optional Smart Drive | Hidden motor transmission + hidden circuit control (balances aesthetics and safety) |
Supports app control, remote access and real‑time monitoring.
| Component | Technology / Material |
|---|---|
| Frame & sash | High‑strength aluminum alloy (thermal‑break), fully concealed option |
| New polyurethane thermal barrier + 39mm insulating glass unit | |
| Multi‑chamber weatherstripping + airtight valve beads | |
| Stainless steel (customizable shape) + double‑layer anti‑odor design | |
| Concealed motor drive, hidden wiring, low noise operation |
| 英文参数项 | 对应参数值 |
|---|---|
| Insulation strip | 28mm |
| Profile thickness | 2.0-5.0mm |
| Frame visual surface | Manual track up: 60 Electric track up: 120 Left and right borders: 50 Surface mounted lower rail: 50 Drainage track: 75 |
| Visible surface of mullion | - |
| Hook enterprise | Manual optical enterprise: 31 Electric optical enterprise: 11 |
| Fan visual surface | - |
| Glass specifications (frame, fan) | 6mm ultra-white + 27A + 6mm ultra-white |
| Accessories brand | Juhe System independently developed |
| Window screen scheme and mesh type | Folding mesh, hidden mesh, reel mesh |
| Available colors | Light sensitive skin black, heppurn black, starry sky black, starry coffee |
| Usage scenario | Balcony, villa, large hall |
| Notes | Electric and manual options available |
